- 編號：8181742
- 頻率：30MHz

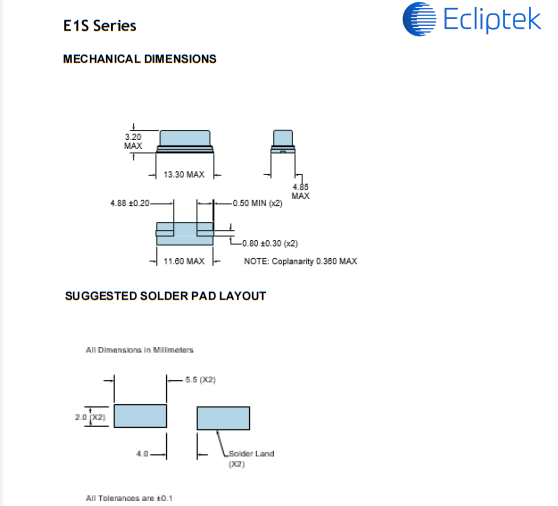

- 尺寸：13.3*4.85mm
Ecliptek高品質環保晶體,E1S美國49SMD晶振,E1SAA12-30.000M TR探測雷達晶振
Ecliptek高品質環保晶體,E1S美國49SMD晶振,E1SAA12-30.000MTR探測雷達晶振，美國日蝕晶振公司，高端晶振，無源晶振，貼片晶振，E1S晶振，E1SAA12-30.000MTR晶振，49SMD晶振，通訊設備晶振，二腳晶振，SMD晶振，醫療設...
.jpg)
TXC,NDK,希華.jpg)
Ecliptek高品質環保晶體,E1S美國49SMD晶振,E1SAA12-30.000M TR探測雷達晶振，美國日蝕晶振公司，高端晶振，無源晶振，貼片晶振，E1S晶振，E1SAA12-30.000M TR晶振，49SMD晶振，通訊設備晶振，二腳晶振，SMD晶振，醫療設備晶振，進口晶振，通訊設備晶振，二腳晶振，無源晶振，電腦晶振，收音機晶振，美國晶振，進口晶振，通訊設備晶振，醫療設備晶振，電話機晶振，電腦晶振，石英晶振，智能手機晶振，藍牙設備晶振，歐美晶振，具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。
格發TXC,NDK,希華.jpg)
.jpg)
EB8WS低損耗表晶,日蝕工業機器人晶振,EB8WSDX12-32.768K進口晶振

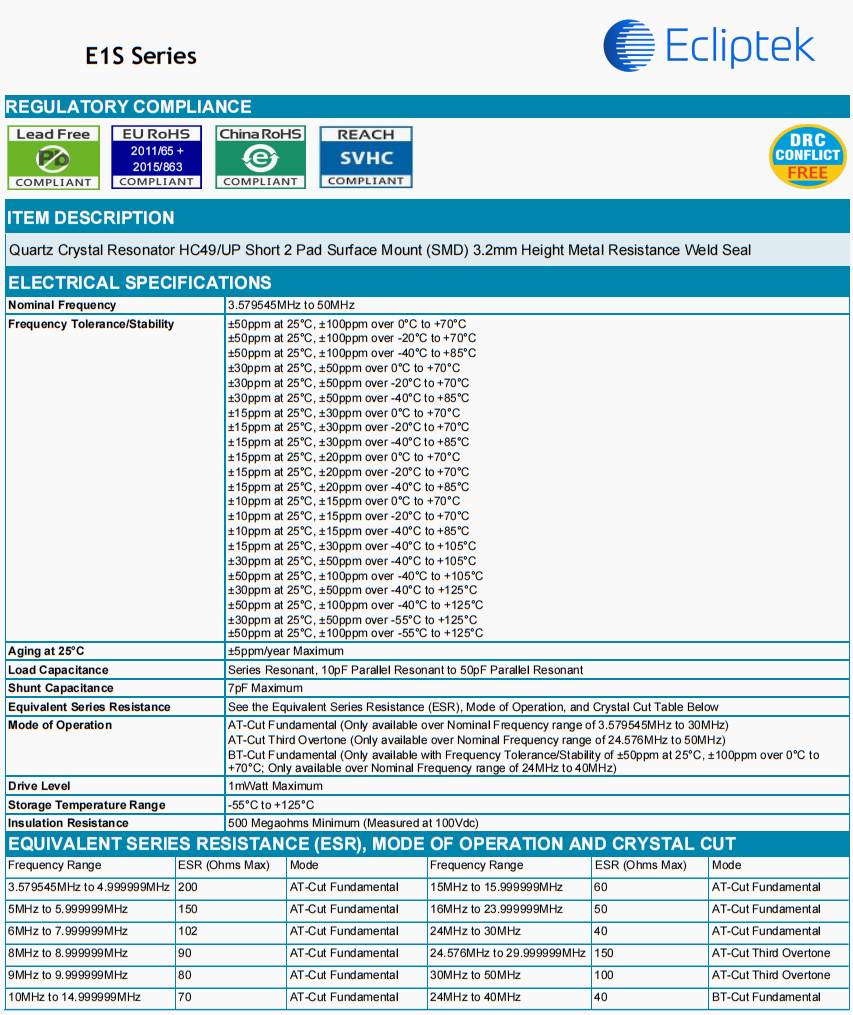

| 標準頻率 | 3.579545MHz to 50MHz |
| 老化 | ±5ppm/year Maximum |
| 負載電容 | Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant |
| 分流電容 | 7pF Maximum |
| 等效串聯電阻 | See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below |
| 工作模式 |
AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz) |
| 驅動電平 | 1mWatt Maximum |
| 儲存溫度范圍 | -55°C to +125°C |
| 絕緣電阻 | 500 Megaohms Minimum (Measured at 100Vdc) |
TXC,NDK,希華.jpg)
EB8WS低損耗表晶,日蝕工業機器人晶振,EB8WSDX12-32.768K進口晶振
.png)
.png)
| 編碼 | 品牌 | 型號 | 工作溫度 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| E1SAA12-24.000M | Ecliptek | E1S | 0°C ~ 70°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SAA12-24.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SAA12-30.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 30 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SAA18-12.000M | Ecliptek | E1S | 0°C ~ 70°C | 12 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA18-16.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 16 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA18-24.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 24 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA20-5.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 5 MHz | ±100ppm | ±50ppm | 20 pF |
| E1SBA18-16.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 16 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-25.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-27.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 27 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-3.6864M TR | Ecliptek | E1S | -20°C ~ 70°C | 3.6864 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-7.3728M TR | Ecliptek | E1S | -20°C ~ 70°C | 7.3728 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-8.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 8 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA20-12.000M | Ecliptek | E1S | -20°C ~ 70°C | 12 MHz | ±100ppm | ±50ppm | 20 pF |
| E1SBA20-12.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 12 MHz | ±100ppm | ±50ppm | 20 pF |
| E1SCA12-24.000M | Ecliptek | E1S | -40°C ~ 85°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SCA12-3.6864M TR | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SCA18-14.7456M TR | Ecliptek | E1S | -40°C ~ 85°C | 14.7456 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-20.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 20 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-3.6864M TR | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-4.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 4 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-7.3728M TR | Ecliptek | E1S | -40°C ~ 85°C | 7.3728 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-8.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 8 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA32-12.000M | Ecliptek | E1S | -40°C ~ 85°C | 12 MHz | ±100ppm | ±50ppm | 32 pF |
| E1SDA12-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 12 pF |
| E1SDA18-24.576M | Ecliptek | E1S | 0°C ~ 70°C | 24.576 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SDA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-12.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-25.000M | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-28.6363M TR | Ecliptek | E1S | -20°C ~ 70°C | 28.6363 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-3.6864M | Ecliptek | E1S | -20°C ~ 70°C | 3.6864 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-4.2944M TR | Ecliptek | E1S | -20°C ~ 70°C | 4.2944 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA20-25.000M | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA20-4.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 4 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA20-8.000M | Ecliptek | E1S | -20°C ~ 70°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA20-8.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA40-8.704M TR | Ecliptek | E1S | -20°C ~ 70°C | 8.704 MHz | ±50ppm | ±30ppm | 40 pF |
| E1SFA12-3.6864M TR | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±50ppm | ±30ppm | 12 pF |
| E1SFA16-6.290M TR | Ecliptek | E1S | -40°C ~ 85°C | 6.29 MHz | ±50ppm | ±30ppm | 16 pF |
| E1SFA18-12.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-14.31818M TR | Ecliptek | E1S | -40°C ~ 85°C | 14.31818 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-25.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-3.6864M | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-7.3728M TR | Ecliptek | E1S | -40°C ~ 85°C | 7.3728 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-8.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA20-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SFAS-24.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | |
| E1SGA18-14.7456M TR | Ecliptek | E1S | 0°C ~ 70°C | 14.7456 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SGA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SHA10-29.950M TR | Ecliptek | E1S | -20°C ~ 70°C | 29.95 MHz | ±30ppm | ±15ppm | 10 pF |
| E1SHA20-25.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±30ppm | ±15ppm | 20 pF |
| E1SJA16-14.31818M | Ecliptek | E1S | -40°C ~ 85°C | 14.31818 MHz | ±30ppm | ±15ppm | 16 pF |
| E1SJA18-24.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 24 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SJA18-25.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SJA18-4.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 4 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SJA20-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±30ppm | ±15ppm | 20 pF |
| E1SMA14-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 14 pF |
| E1SMA18-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 18 pF |
| E1SMA18-27.000M | Ecliptek | E1S | -40°C ~ 85°C | 27 MHz | ±20ppm | ±15ppm | 18 pF |
| E1SMA18-27.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 27 MHz | ±20ppm | ±15ppm | 18 pF |
| E1SNA16-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±15ppm | ±10ppm | 16 pF |
| E1SNA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±15ppm | ±10ppm | 18 pF |
| E1SSA18-5.000M TR | Ecliptek | E1S | -40°C ~ 105°C | 5 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SSA20-10.000M | Ecliptek | E1S | -40°C ~ 105°C | 10 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SSA20-10.000M TR | Ecliptek | E1S | -40°C ~ 105°C | 10 MHz | ±50ppm | ±30ppm | 18 pF |
| E1WSDA12-32.768K | Ecliptek | E1WS | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| E1WSDA12-32.768K TR | Ecliptek | E1WS | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| EA1216MA08-25.000M TR | Ecliptek | EA1216 | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 8 pF |
| EA1620MA10-25.000M TR | Ecliptek | EA1620 | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 10 pF |
| EA3560LA20-25.000M TR | Ecliptek | EA3560 | -20°C ~ 70°C | 25 MHz | ±20ppm | ±15ppm | 20 pF |
| EA5070CA12-24.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| EA5070CA18-20.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 20 MHz | ±100ppm | ±50ppm | 18 pF |
| EA5070CAS-8.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 8 MHz | ±100ppm | ±50ppm | 8 pF |
| EA5070FA16-22.5792M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 22.5792 MHz | ±50ppm | ±30ppm | 16 pF |
| EA5070FA18-10.000M | Ecliptek | EA5070 | -40°C ~ 85°C | 10 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-14.31818M | Ecliptek | EA5070 | -40°C ~ 85°C | 14.31818 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-24.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-25.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-27.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 27 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA20-7.3728M | Ecliptek | EA5070 | -40°C ~ 85°C | 7.3728 MHz | ±50ppm | ±30ppm | 20 pF |
| EA5070GA18-25.000625M | Ecliptek | EA5070 | 0°C ~ 70°C | 25.000625 MHz | ±30ppm | ±15ppm | 18 pF |
| EA5070GA18-25.000625M TR | Ecliptek | EA5070 | 0°C ~ 70°C | 25.000625 MHz | ±30ppm | ±15ppm | 18 pF |
| EA5070GA20-7.3728M | Ecliptek | EA5070 | 0°C ~ 70°C | 7.3728 MHz | ±30ppm | ±15ppm | 20 pF |
| EA5070JA18-25.000625M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 25.000625 MHz | ±30ppm | ±15ppm | 18 pF |
| EA5070JA20-14.31818M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 14.31818 MHz | ±30ppm | ±15ppm | 20 pF |
| EA5070JA20-6.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 6 MHz | ±30ppm | ±15ppm | 20 pF |
| EA5070PA20-8.000M | Ecliptek | EA5070 | -20°C ~ 70°C | 8 MHz | ±15ppm | ±10ppm | 20 pF |
| EB2025YA10-25.000M TR | Ecliptek | EB2025 | -40°C ~ 125°C | 25 MHz | ±50ppm | ±30ppm | 10 pF |
| EB3250AYA08-25.000M TR | Ecliptek | EB3250A | -40°C ~ 125°C | 25 MHz | ±50ppm | ±30ppm | 8 pF |
| EB8WSDX12-32.768K TR | Ecliptek | EB8WS | -40°C ~ 125°C | 32.768 kHz | ±20ppm | 12.5 pF |
