X1G0042410001愛普生差分晶體振蕩器介紹與原廠編碼目錄
エプソン水晶デバイス日本精工愛普生株式會社生產的頻率組合比較完整,主要的晶體和振蕩器類型都有制造供應,差分晶體振蕩器是比較高端的一種有源器件,雖然提供差分晶振的廠家有很多,但愛普生晶振品牌的口碑,產能,品質非常滿足廣大用戶的需求,因此使用愛普生品牌的人也更多.愛普生的差分系列產品主要有7050mm,5032mm和3225mm這三種尺寸,系列型號分別對應SG7050,SG5032和SG3225等.
這三個系列的料號后面還有不同的后綴,每個后綴在參數規格上會有一些區別,主要是為不同用戶設計的,愛普生的行業標準,固定頻率,差分輸出,簡單封裝的石英晶體振蕩器(SPXO).
主要特點:
頻率范圍:從25MHz到700MHz
溫度范圍:-40℃至+105℃
緊密穩定性:±20ppm,±25ppm,±30ppm,±50ppm,±100ppm
電源電壓:2.5V和3.3V(2.375V-3.6V)
低功耗:最大低至25mA(SG3225/7050VENLVDS)
差分輸出:LV-PECL,LVDS和HCSL
三種包裝尺寸:7x5mm、5x3.2mm、3.2x2.5mm

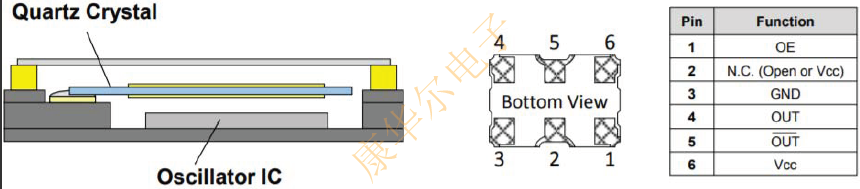

愛普生晶振公司提供全套高性能和成本優化的差分SPXO,以匹配任何應用.愛普生是唯一設計和制造晶體和振蕩器IC的供應商,因此可以提供業界最佳質量的高性能產品.愛普生使用傳統的AT切割晶體和PLL提供主流解決方案,以平衡性能和成本.愛普生還使用高頻基本(HFF)晶體來提供最低級別的抖動.愛普生的所有計時產品均僅使用基本模式晶體,以實現卓越的可靠性.
愛普生的SPXO差分晶體振蕩器的尺寸從3.2mmx2.5mm至7mmx5mm,覆蓋溫度范圍高達-40℃至+105℃,并通過LV-PECL和LVDS使用行業標準的引腳輸出和HCSL輸出選項.
愛普生的固定頻率差分輸出SPXO通過各種行業標準的小型表面貼裝封裝差分晶體振蕩器提供高性能和低功耗,并適合所有應用.
體積小
擴展溫度
嚴格的穩定性
低功耗
LV-PECL,LVDS和HCSL輸出
晶體技術可實現產品差異化:
為了提高可靠性,愛普生差分輸出SPXO僅使用基本模式晶體.基本晶體不會出現第三泛音設計常見的模式跳躍或冷啟動問題.愛普生僅使用基本晶體,使用三種架構為在所有頻率上的低抖動,低成本和可靠操作提供最佳解決方案:

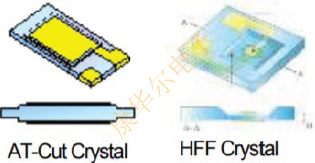

•使用氫氟酸(HF)蝕刻HFF-HFF晶體,以形成具有薄諧振區域的倒置臺面.HFF晶體像第三泛音晶體一樣具有基本晶體的可靠性,可實現高頻和低抖動.愛普生HFF差分晶體振蕩器實現了業界最低的抖動,在156.25MHz時抖動低至50fs.
•AT+PLL–SG3225EAN/VAN,SG5032EAN/VAN和SG7050EAN/VAN將AT晶體與PLLIC結合在一起,以低成本實現了高頻(高達700MHz).抖動通常為300fs,高于HFF設計,但對于大多數應用而言足夠低.
完整的產品線:

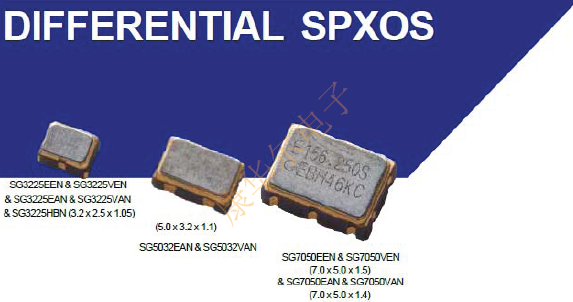

愛普生擁有完整的差分晶振SPXO產品線,覆蓋25至700MHz,封裝尺寸從3.2mmx2.5mm至7mmx5mm.
穩定性和工作溫度選項如下所示:
SG3225EAN晶振/VAN&SG5032EAN晶振/VAN&SG7050EAN/VAN頻率溫度變化
SG3225HBN頻率溫度變化
SG3225EEN/VEN&SG7050EEN/VEN頻率溫度變化
可編程SPXO:愛普生的SG-8503可編程晶振與引腳兼容,交貨周期非常短,可以快速制作原型.如果以上提供的參考規格中,沒有你需要的,可以聯系康華爾電子0755-27838351,我們將會與原廠聯系,為你的特殊要求定制專屬的方案.我們熱衷于為每一位客戶解決任何與晶振相關的問題,客戶的滿意,就是我們的追求!以下是愛普生差分晶體振蕩器系列的原廠代碼,可供廣大新老用戶參考.
X1G0042410001愛普生差分晶體振蕩器介紹與原廠編碼目錄
エプソン水晶デバイス日本精工愛普生株式會社生產的頻率組合比較完整,主要的晶體和振蕩器類型都有制造供應,差分晶體振蕩器是比較高端的一種有源器件,雖然提供差分晶振的廠家有很多,但愛普生晶振品牌的口碑,產能,品質非常滿足廣大用戶的需求,因此使用愛普生品牌的人也更多.愛普生的差分系列產品主要有7050mm,5032mm和3225mm這三種尺寸,系列型號分別對應SG7050,SG5032和SG3225等.
主要特點:
頻率范圍:從25MHz到700MHz
溫度范圍:-40℃至+105℃
緊密穩定性:±20ppm,±25ppm,±30ppm,±50ppm,±100ppm
電源電壓:2.5V和3.3V(2.375V-3.6V)
低功耗:最大低至25mA(SG3225/7050VENLVDS)
差分輸出:LV-PECL,LVDS和HCSL
三種包裝尺寸:7x5mm、5x3.2mm、3.2x2.5mm
愛普生晶振公司提供全套高性能和成本優化的差分SPXO,以匹配任何應用.愛普生是唯一設計和制造晶體和振蕩器IC的供應商,因此可以提供業界最佳質量的高性能產品.愛普生使用傳統的AT切割晶體和PLL提供主流解決方案,以平衡性能和成本.愛普生還使用高頻基本(HFF)晶體來提供最低級別的抖動.愛普生的所有計時產品均僅使用基本模式晶體,以實現卓越的可靠性.
愛普生的SPXO差分晶體振蕩器的尺寸從3.2mmx2.5mm至7mmx5mm,覆蓋溫度范圍高達-40℃至+105℃,并通過LV-PECL和LVDS使用行業標準的引腳輸出和HCSL輸出選項.
優勢:
低抖動體積小
擴展溫度
嚴格的穩定性
低功耗
LV-PECL,LVDS和HCSL輸出
晶體技術可實現產品差異化:
為了提高可靠性,愛普生差分輸出SPXO僅使用基本模式晶體.基本晶體不會出現第三泛音設計常見的模式跳躍或冷啟動問題.愛普生僅使用基本晶體,使用三種架構為在所有頻率上的低抖動,低成本和可靠操作提供最佳解決方案:
•使用氫氟酸(HF)蝕刻HFF-HFF晶體,以形成具有薄諧振區域的倒置臺面.HFF晶體像第三泛音晶體一樣具有基本晶體的可靠性,可實現高頻和低抖動.愛普生HFF差分晶體振蕩器實現了業界最低的抖動,在156.25MHz時抖動低至50fs.
•AT+PLL–SG3225EAN/VAN,SG5032EAN/VAN和SG7050EAN/VAN將AT晶體與PLLIC結合在一起,以低成本實現了高頻(高達700MHz).抖動通常為300fs,高于HFF設計,但對于大多數應用而言足夠低.
完整的產品線:
愛普生擁有完整的差分晶振SPXO產品線,覆蓋25至700MHz,封裝尺寸從3.2mmx2.5mm至7mmx5mm.
| 產品 | 輸出 | 體系結構 | 尺寸 | 頻率(MHz) | 電壓(V) | ICC,最大(mA) |
| SG3225EEN | LV-PECL | HFF | 3.2x2.5x1.05 | 25~200 | 2.5V~3.3V | 75 |
| SG3225VEN | LVDS | HFF | 3.2x2.5x1.05 | 25~200 | 2.5V~3.3V | 25 |
| SG3225EAN | LV-PECL | AT+PLL | 3.2x2.5x1.05 | 50~700 | 2.25V~3.63V | 65 |
| SG3225VAN | LVDS | AT+PLL | 3.2x2.5x1.05 | 73.5~700 | 2.25V~3.63V | 30 |
| SG3225HBN | HCSL | HFF | 3.2x2.5x1.05 | 100~325 | 3.3V | 35 |
| SG5032EAN | LV-PECL | AT+PLL | 5.0x3.2x1.0 | 73.5~700 | 2.25V~3.63V | 65 |
| SG5032VAN | LVDS | AT+PLL | 5.0x3.2x1.0 | 73.5~700 | 2.25V~3.63V | 30 |
| SG7050EEN | LV-PECL | HFF | 7.0x5.0x1.5 | 25~200 | 2.5V~3.3V | 75 |
| SG7050VEN | LVDS | HFF | 7.0x5.0x1.5 | 25~200 | 2.5V~3.3V | 25 |
| SG7050EAN | LV-PECL | AT+PLL | 7.0x5.0x1.4 | 73.5~700 | 2.5V~3.3V | 65 |
| SG7050VAN | LVDS | AT+PLL | 7.0x5.0x1.4 | 73.5~700 | 2.5V~3.3V | 30 |
SG3225EAN晶振/VAN&SG5032EAN晶振/VAN&SG7050EAN/VAN頻率溫度變化
| SG3225EAN晶振/VAN&SG5032EAN晶振/VAN&SG7050EAN/VAN |
| CB:±20ppm/-20℃~70℃ |
| EB:±30ppm/-20℃~70℃ |
| EG:±30ppm/-40℃~85℃ |
| JB:±50ppm/-20℃~70℃ |
| JG:±50ppm/-40℃~85℃ |
| SG3225HBN |
| LG:±100ppm/-40℃~85℃ |
| JG:±50ppm/-40℃~85℃ |
| SG3225EEN/VEN&SG7050EEN/VEN |
| DG:±25ppm/-40℃~85℃ |
| JG:±50ppm/-40℃~85℃ |
| JH:±50ppm/-40℃~105℃ |
| LG:±100ppm/-40℃~85℃ |
| LH:±100ppm/-40℃~105℃ |
| X1G0042410001 | SG3225VAN晶振 | 125.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410002 | SG3225VAN晶振 | 125.006250MHz | 3.20x2.50x1.20mm |
| X1G0042410004 | SG3225VAN晶振 | 100.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410005 | SG3225VAN晶振 | 200.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410007 | SG3225VAN晶振 | 106.250000MHz | 3.20x2.50x1.20mm |
| X1G0042410011 | SG3225VAN晶振 | 75.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410012 | SG3225VAN晶振 | 150.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410014 | SG3225VAN晶振 | 156.250000MHz | 3.20x2.50x1.20mm |
| X1G0042410020 | SG3225VAN晶振 | 125.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410021 | SG3225VAN晶振 | 125.006250MHz | 3.20x2.50x1.20mm |
| X1G0042410023 | SG3225VAN晶振 | 100.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410024 | SG3225VAN晶振 | 200.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410026 | SG3225VAN晶振 | 106.250000MHz | 3.20x2.50x1.20mm |
| X1G0042410030 | SG3225VAN晶振 | 75.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410031 | SG3225VAN晶振 | 150.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410033 | SG3225VAN晶振 | 156.250000MHz | 3.20x2.50x1.20mm |
| X1G0042410039 | SG3225VAN晶振 | 125.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410040 | SG3225VAN晶振 | 125.006250MHz | 3.20x2.50x1.20mm |
| X1G0042410042 | SG3225VAN晶振 | 100.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410043 | SG3225VAN晶振 | 200.000000MHz | 3.20x2.50x1.20mm |
| X1G0042410045 | SG3225VAN晶振 | 106.250000MHz | 3.20x2.50x1.20mm |
| X1G0042510012 | SG3225EAN晶振 | 75.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510013 | SG3225EAN晶振 | 150.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510051 | SG3225EAN晶振 | 150.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510053 | SG3225EAN晶振 | 156.250000MHz | 3.20x2.50x1.20mm |
| X1G0042510059 | SG3225EAN晶振 | 125.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510060 | SG3225EAN晶振 | 125.006250MHz | 3.20x2.50x1.20mm |
| X1G0042510062 | SG3225EAN晶振 | 100.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510063 | SG3225EAN晶振 | 200.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510091 | SG3225EAN晶振 | 50.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510104 | SG3225EAN晶振 | 250.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510106 | SG3225EAN晶振 | 80.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510111 | SG3225EAN晶振 | 133.330000MHz | 3.20x2.50x1.20mm |
| X1G0042510114 | SG3225EAN晶振 | 320.000000MHz | 3.20x2.50x1.20mm |
| X1G0042510115 | SG3225EAN晶振 | 500.000000MHz | 3.20x2.50x1.20mm |
| X1G0042610069 | SG5032VAN晶振 | 150.000000MHz | 5.00x3.20x1.20mm |
| X1G0042610071 | SG5032VAN晶振 | 156.250000MHz | 5.00x3.20x1.20mm |
| X1G0042610079 | SG5032VAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042610083 | SG5032VAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042610087 | SG5032VAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710024 | SG5032EAN晶振 | 200.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710026 | SG5032EAN晶振 | 106.250000MHz | 5.00x3.20x1.20mm |
| X1G0042710030 | SG5032EAN晶振 | 75.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710031 | SG5032EAN晶振 | 150.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710033 | SG5032EAN晶振 | 156.250000MHz | 5.00x3.20x1.20mm |
| X1G0042710038 | SG5032EAN晶振 | 700.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710039 | SG5032EAN晶振 | 125.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710040 | SG5032EAN晶振 | 125.006250MHz | 5.00x3.20x1.20mm |
| X1G0042710042 | SG5032EAN晶振 | 100.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710043 | SG5032EAN晶振 | 200.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710045 | SG5032EAN晶振 | 106.250000MHz | 5.00x3.20x1.20mm |
| X1G0042710049 | SG5032EAN晶振 | 75.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710050 | SG5032EAN晶振 | 150.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710052 | SG5032EAN晶振 | 156.250000MHz | 5.00x3.20x1.20mm |
| X1G0042710058 | SG5032EAN晶振 | 125.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710059 | SG5032EAN晶振 | 125.006250MHz | 5.00x3.20x1.20mm |
| X1G0042710061 | SG5032EAN晶振 | 100.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710062 | SG5032EAN晶振 | 200.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710064 | SG5032EAN晶振 | 106.250000MHz | 5.00x3.20x1.20mm |
| X1G0042710068 | SG5032EAN晶振 | 75.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710069 | SG5032EAN晶振 | 150.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710071 | SG5032EAN晶振 | 156.250000MHz | 5.00x3.20x1.20mm |
| X1G0042710079 | SG5032EAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710083 | SG5032EAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710087 | SG5032EAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710091 | SG5032EAN晶振 | 50.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710109 | SG5032EAN晶振 | 250.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710111 | SG5032EAN晶振 | 80.000000MHz | 5.00x3.20x1.20mm |
| X1G0042710115 | SG5032EAN晶振 | 133.330000MHz | 5.00x3.20x1.20mm |
| X1G0042810001 | SG7050VAN晶振 | 125.000000MHz | 7.00x5.00x1.60mm |
| X1G0042810002 | SG7050VAN晶振 | 125.006250MHz | 7.00x5.00x1.60mm |
| X1G0042810004 | SG7050VAN晶振 | 100.000000MHz | 7.00x5.00x1.60mm |
| X1G0042810005 | SG7050VAN晶振 | 200.000000MHz | 7.00x5.00x1.60mm |
| X1G0042810007 | SG7050VAN晶振 | 106.250000MHz | 7.00x5.00x1.60mm |
| X1G0042810011 | SG7050VAN晶振 | 75.000000MHz | 7.00x5.00x1.60mm |
| X1G0042810012 | SG7050VAN晶振 | 150.000000MHz | 7.00x5.00x1.60mm |
| X1G0042810014 | SG7050VAN晶振 | 156.250000MHz | 7.00x5.00x1.60mm |
| X1G0042810020 | SG7050VAN晶振 | 125.000000MHz | 7.00x5.00x1.60mm |
| X1G0042810021 | SG7050VAN晶振 | 125.006250MHz | 7.00x5.00x1.60mm |
| X1G0042810023 | SG7050VAN晶振 | 100.000000MHz | 7.00x5.00x1.60mm |
| X1G0044710016 | SG5032CCN晶振 | 11.059200MHz | 5.00x3.20x1.30mm |
| X1G0044710017 | SG5032CCN晶振 | 12.288000MHz | 5.00x3.20x1.30mm |
| X1G0044710020 | SG5032CCN晶振 | 24.000000MHz | 5.00x3.20x1.30mm |
| X1G0044710021 | SG5032CCN晶振 | 24.576000MHz | 5.00x3.20x1.30mm |
| X1G0044710022 | SG5032CCN晶振 | 27.000000MHz | 5.00x3.20x1.30mm |
| X1G0044710031 | SG5032CCN晶振 | 33.330000MHz | 5.00x3.20x1.30mm |
| X1G0044710034 | SG5032CCN晶振 | 12.000000MHz | 5.00x3.20x1.30mm |
| X1G0044710035 | SG5032CCN晶振 | 16.700000MHz | 5.00x3.20x1.30mm |
| X1G0044710041 | SG5032CCN晶振 | 11.289600MHz | 5.00x3.20x1.30mm |
| X1G0044810001 | SG7050CAN晶振 | 12.288000MHz | 7.00x5.00x1.50mm |
| X1G0044810002 | SG7050CAN晶振 | 24.000000MHz | 7.00x5.00x1.50mm |
| X1G0044810003 | SG7050CAN晶振 | 25.000000MHz | 7.00x5.00x1.50mm |
| X1G0044810004 | SG7050CAN晶振 | 27.000000MHz | 7.00x5.00x1.50mm |
| X1G0044810005 | SG7050CAN晶振 | 10.000000MHz | 7.00x5.00x1.50mm |
| X1G0044810006 | SG7050CAN晶振 | 12.000000MHz | 7.00x5.00x1.50mm |
| X1G0044810007 | SG7050CAN晶振 | 16.000000MHz | 7.00x5.00x1.50mm |
